Henley Runabout

Origin Yachts presents the Henley Runaround, a 1930s-style runabout constructed with modern materials and advanced systems. Powered by a Volvo Penta D3-150 diesel engine (150hp, 5-cylinder), it achieves a maximum speed of 27 knots and a cruising speed of 14 knots. The hull, a V-bottom single-chine design, is built with mahogany strakes over marine ply, sheathed for durability, and features a rounded tumblehome transom. Framing utilizes Douglas Fir, with bulkheads in marine ply and decking in teak strips over ply. The layout includes front and rear cockpits separated by an engine room with four hinged access panels.

Technical Specifications:

Design Category: C (Inshore)
LOA: 5.49m (18')
Beam: 1.82m (6')
Hull Mid Depth: 0.86m (2'10")
Draft: 0.53m (1'9")
Dry Weight (Approx.): 1,380 kg (3,043 lbs)
Engine: Volvo Penta D3-150 I, 2.4L inline-5, 110 kW (150hp)
Propulsion: Stern drive, Volvo Penta trim system
Steering: Volvo Penta QL hydraulic
Fuel Capacity: 150L
Seating Capacity: 6 persons
Hull Construction:

Below chine: Mahogany strakes over marine ply, sheathed
Above chine: Mahogany strakes
Frames: Douglas Fir
Bulkheads: Marine plywood

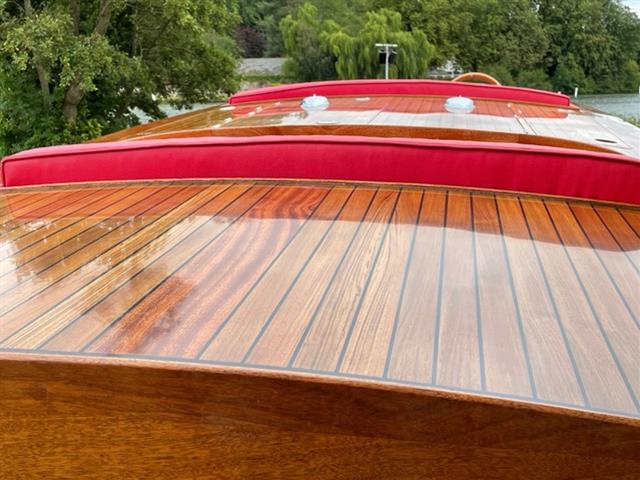

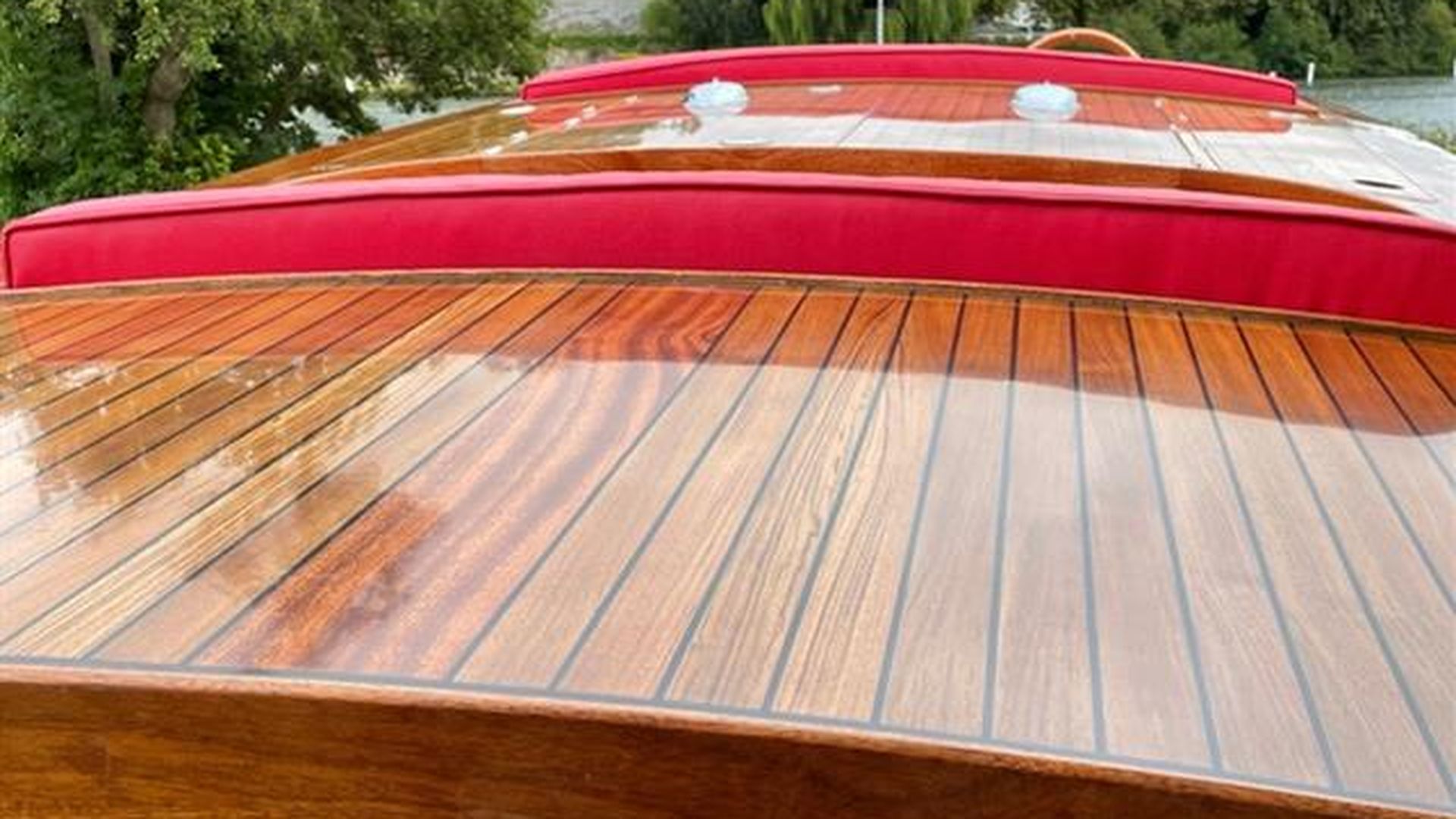

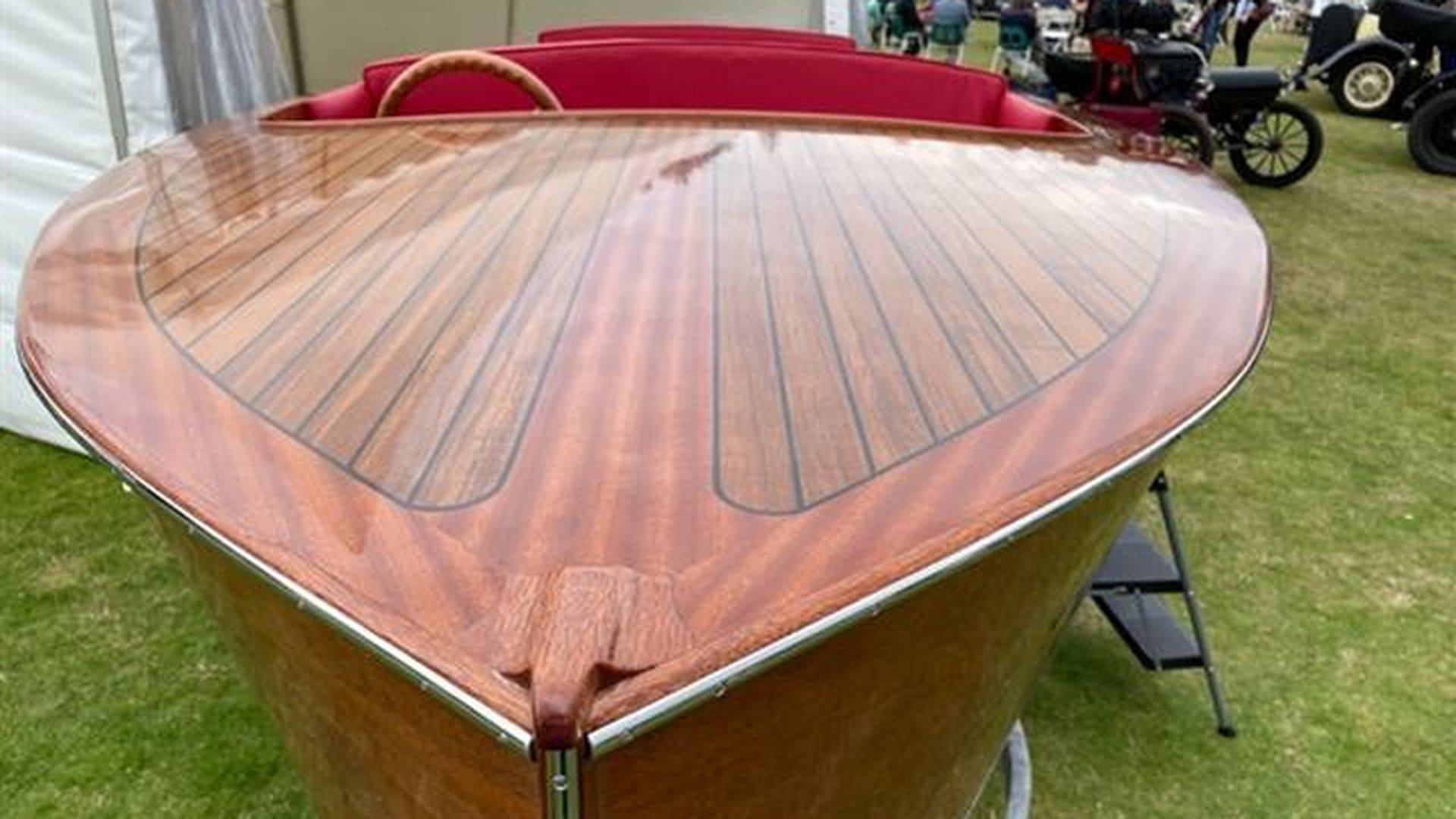

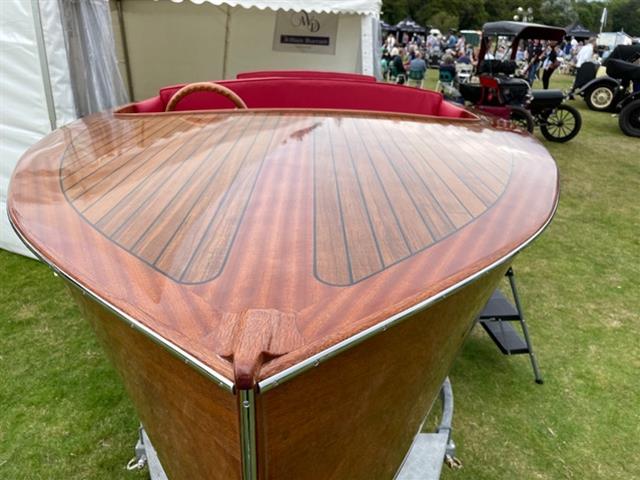

Decking: Teak strips over marine ply

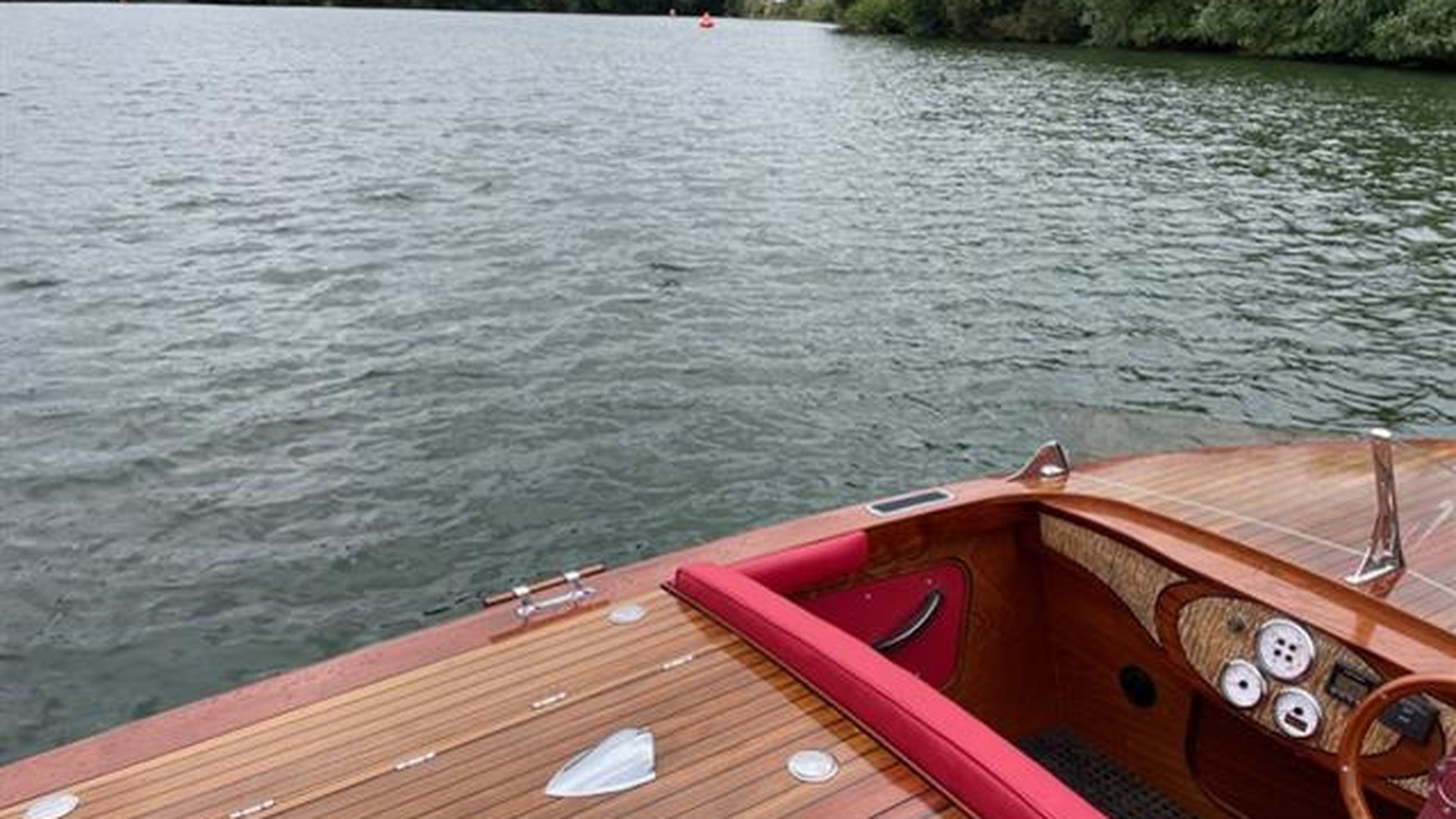

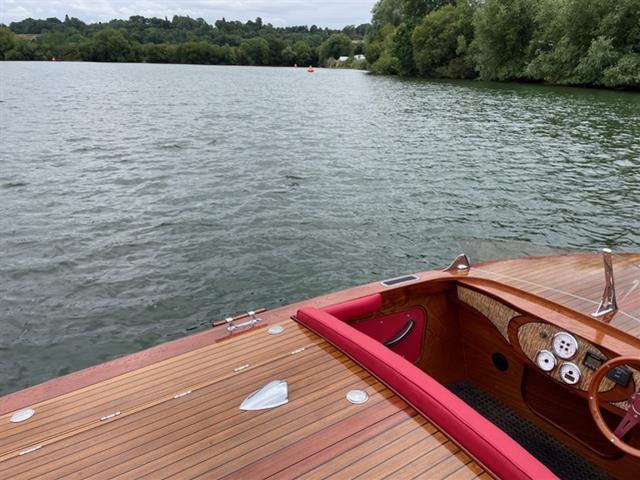

Front Cockpit Systems:

Seating: Red leather benches, under-seat storage
Heater: 10kW/12V/550m, dual outlets

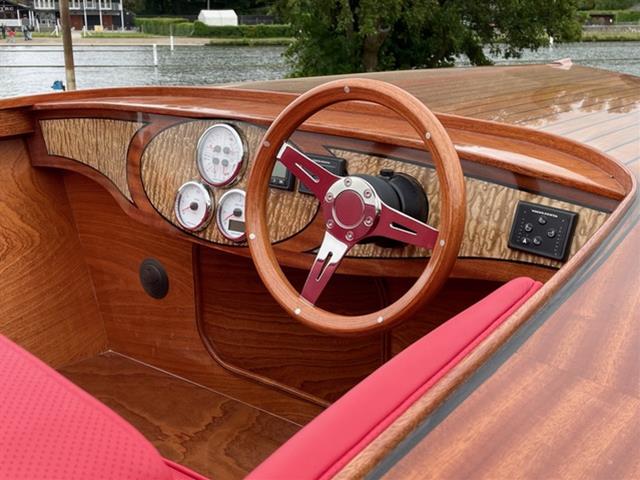

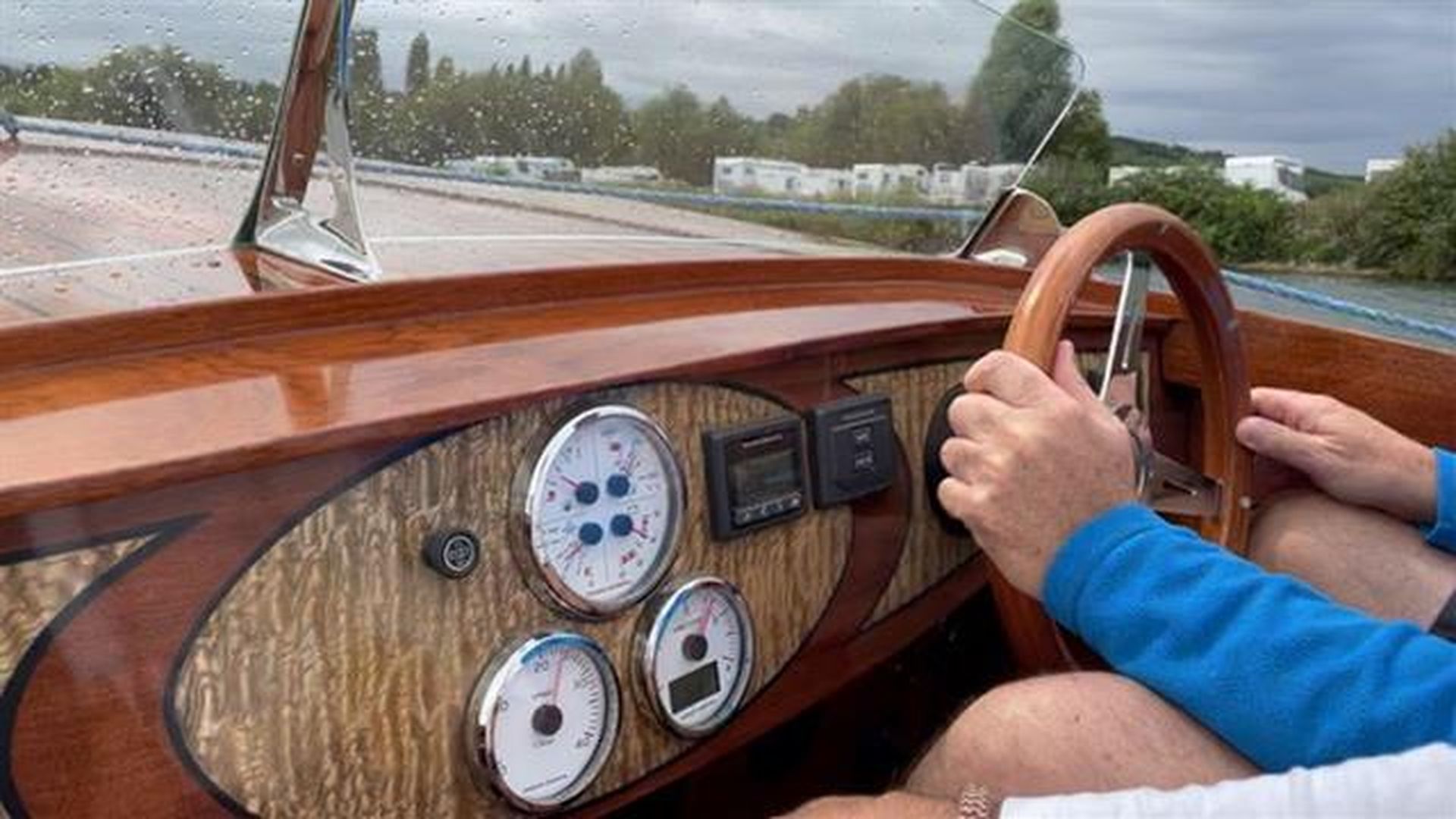

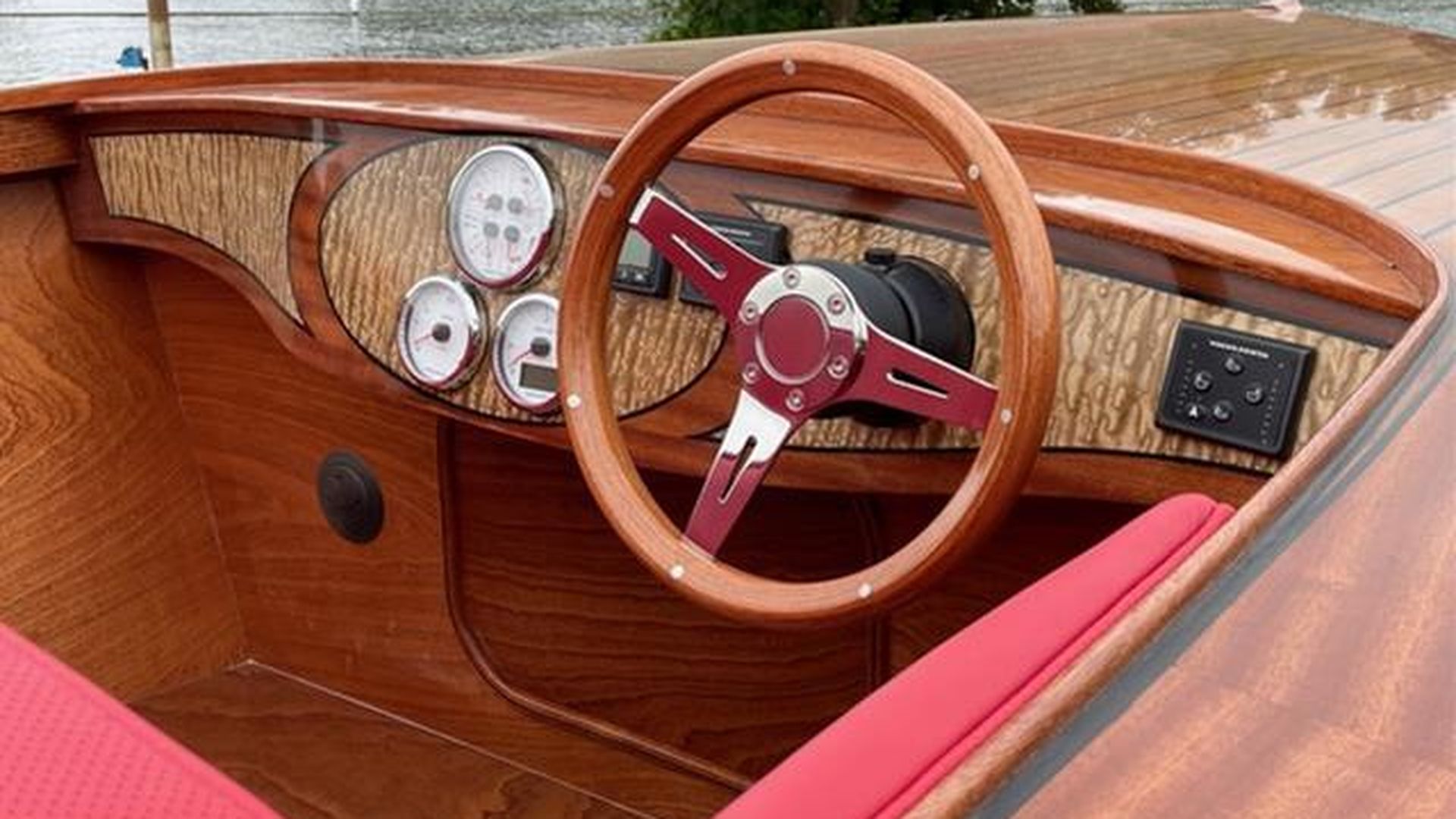

Instrumentation:
Volvo Penta EVC 2.5" display
Tachometer (0-4000rpm)
Speedometer
4-in-1 gauge (oil pressure, coolant temp, fuel level, 12V voltmeter)
Controls: Electronic shift/throttle, NMEA 2000/Easy Connect, Interceptor Boat Trim panel
Electrical:
Remote-lockable starter/house battery isolators
Momentary battery combiner switch
Bilge/lighting switches
Safety: Man-overboard lanyard, side grab handles
Drainage: 2 deck drains
Lighting: Under-seat LEDs
Engine Room Configuration:

Access: Four lockable hatches
Power:
Starter Battery: Odyssey ODX-AGM65, 12V, 74Ah, 950A CCA
House Battery: Odyssey ODS-AGM42L, 12V, 42Ah, 540A CCA
Charging: Victron Energy Phoenix Smart Charger (AC), Bluetooth-enabled
Protection: Galvanic isolator
Fuel System: 150L tank, filter, water separator
Electrical: DC fuse panels, motorized isolator switches
Storage: Rope and fender compartments

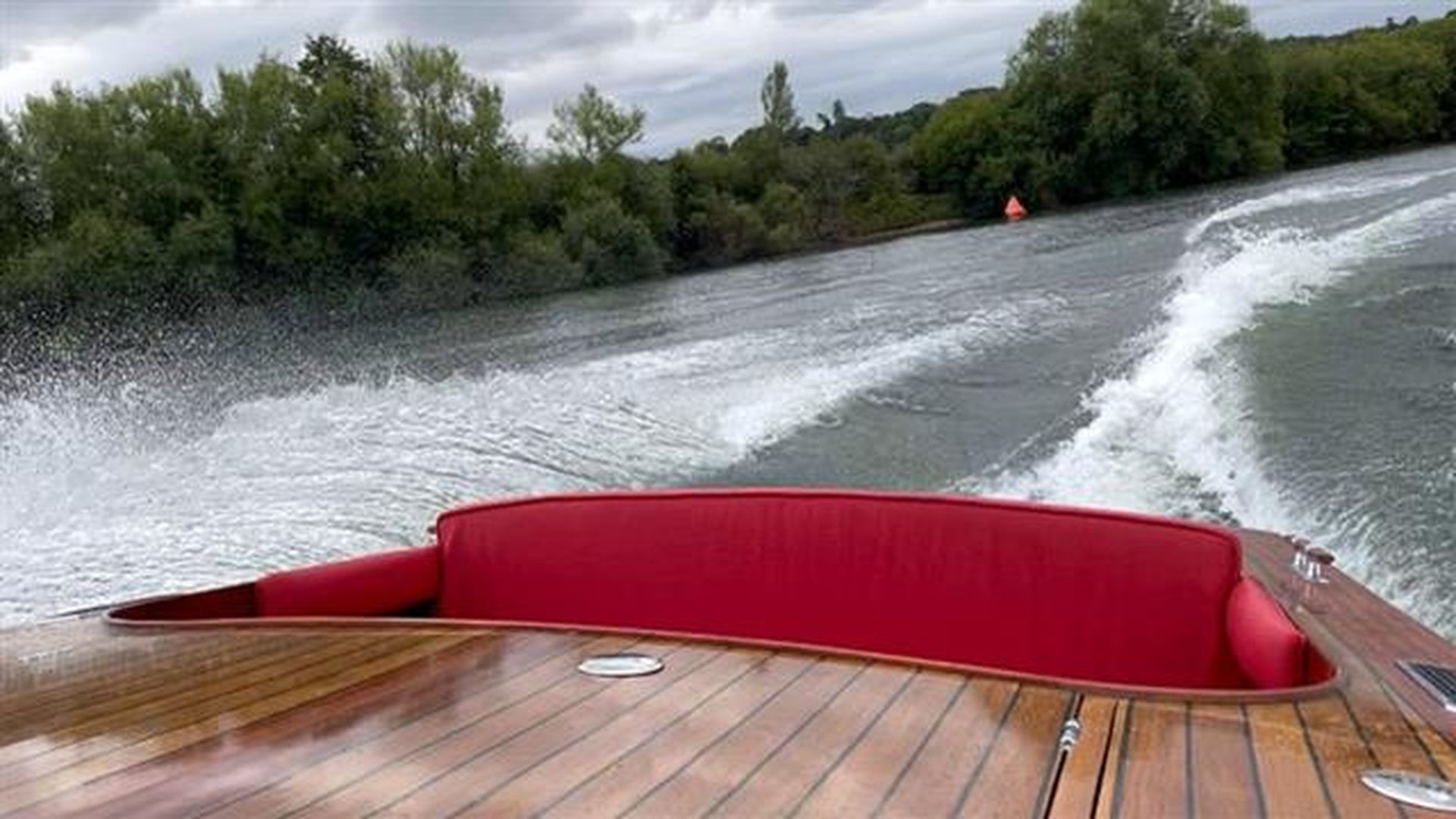

Rear Cockpit Features:

Seating: Red leather benches, under-seat storage
Systems: Rear bilge pump, fuel cut-off valve, retractable multi-sensor
Access: Panels to the fuel tank and shaft seal
Amenities: Dual heater outlets, under-seat LEDs, 2 deck drains
Additional Equipment:

Trailer: SBS included
Design: Selway Fisher
Builder: William Durrant Ltd
This Henley Runaround combines traditional aesthetics with contemporary marine engineering. Contact Origin Yachts for further details or to arrange a viewing.

---
